适用于 PCI Express 5.0 的 Xgig 协议训练器主机测试台接口适配卡模块
适用于 PCI Express 5.0 平台的接口适配卡模块
PCIe 协议训练器主机测试台为 PCIe 适配器卡端点提供连接和电源，以进行测试和验收。
VIAVI
Xgig™ Exerciser Host Test Stand
for PCI Express®
5.0
Provides connectivity and power to a PCIe adapter
card endpoint for testing and qualification

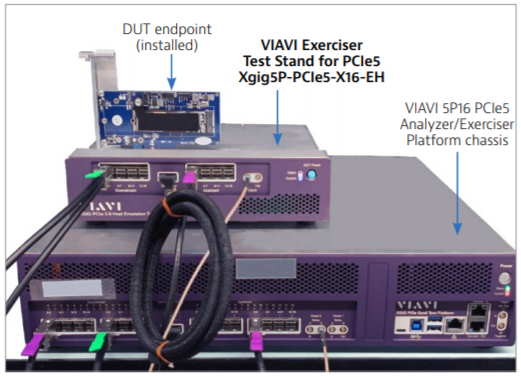

VIAVI Solutions Xgig5P-PCIe5-X16-EH is a test stand
used with the PCIe 5.0 Exerciser operating in host
emulation mode. The Test Stand provides a PCIe CEM
slot for connectivity and power to the adapter card
endpoint Device Under Test (DUT). It supports testing
of Ethernet, RAID controllers, graphics cards and many
other device functions. The Exerciser Host-mode
Test Stand uses high-speed cabling to connect to the
Analysis Platform running the Exerciser function.
The test stand complements the Exerciser and is
intended for developing, debugging and performance
tuning PCIe adapter cards and their controllers and
firmware. Bi-directional PCIe 5.0 protocol data across
16-lanes and at 32Gbps can be transferred through the
test stand between DUT and exerciser platform.
The Test Stand uses high-speed linear signal re-drivers
to buffer the high-speed data signals ensuring clean
signals are delivered to the Analysis Platform chassis
and DUT device.
