VIAVI
Xgig M.2, 4-lane Interposer
for PCI Express® 4.0

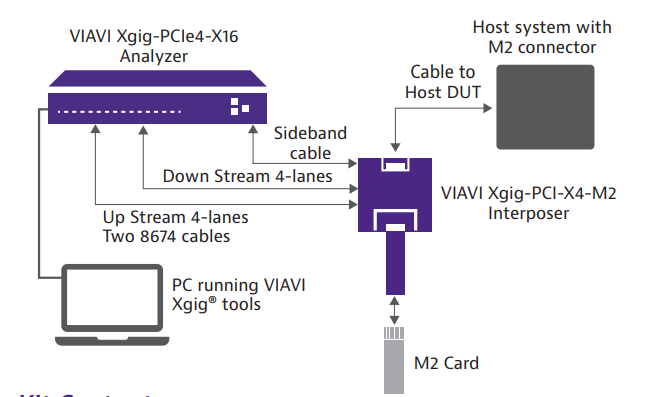

Provides a tap of host-system to M.2 PCIe SSD data signals
for input to the VIAVI PCIe 4.0 Analyzer.
VIAVI Solutions Xgig4K-PCIe4-X4-M2 is an Active
Interposer with a design optimized for M.2 SSD
development. This interposer enables protocol analysis
of communication between a M.2 PCIe SSD and the
host system. It supports use in server, workstation,
desktop and notebook PCs, and other system types.
Works with M.2 card types 2230, 2242, 2260, 2280 and
22110. Bidirectional PCIe 4.0 protocol data on each of
4 lanes is captured at up to 16GTps rate for analysis.
High-quality, low-loss, custom SFF-8764 cables are
supplied for connection into the VIAVI Analyzer.
