PCIE5.0 Analyzer(Xgig5P-PCIe5-X16-PF)
  • 概 要
  • 规格表
  • 选附件
  • 产品资料

VIAVI

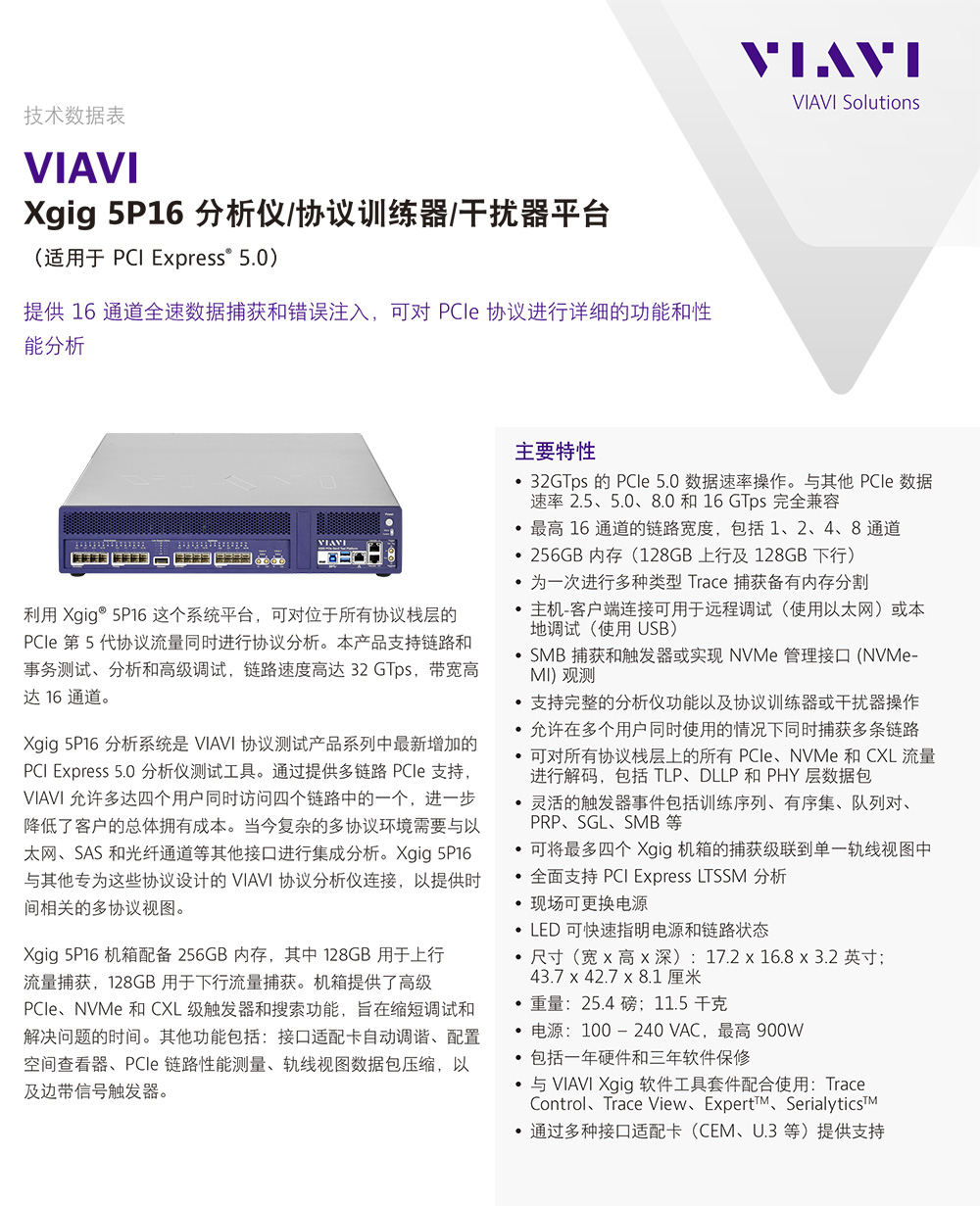

Xgig® 5P16 Analyzer/Exerciser Platform

for PCI Express® 5.0

Provides 16-lane full-speed data capture and error injection, enabling detailed functional and performance analysis of PCIe protocol.



The VIAVI Solutions Xgig 5P16 platform allows simultaneous protocol analysis for PCIe 5th generation protocol traffic at all layers of the stack. The exerciser capability supports compliance testing and advanced debug. It supports link speeds to 32 GT/s and widths up-to 16-lanes.

The latest addition to the family of VIAVI protocol test products, it is fully compatible with other PCIe data rates of 2.5, 5.0, 8.0 and 16GTps. In today’s complex, multiprotocol environments where integrated analysis with other interfaces such as Ethernet, SAS, and FC are required, the Xgig 5P16 connects with other VIAVI protocol analyzers designed for these protocols to provide time correlated multiprotocol views.

Please contact your local VIAVI representative for details or find more product options on our PCIe Test Equipment page.

Highlights

  • 32GTps, PCIe 5.0 data rate operation
  • Fully compatible with previous PCIe generations at 2.5G, 5.0G, 8G and 16GTps
  • Link widths to 16-lanes, including 1-, 2-, 4-, and 8-lanes
  • 256GB memory (128GB upstream and 128GB downstream)
  • Memory segmentation for capture of multiple traces
  • Host-Client connection for remote debugging using Ethernet or local debugging using USB
  • SMB capture and trigger for NVMe Management Interface (NVMe-MI) observability
  • Supports full Analyzer functionality together with Exerciser operation
  • Highly flexible PCIe protocol generation and response (exerciser)
  • The Auxiliary ports allow multi-chassis operation
  • Decodes all PCIe and NVMe traffic at all layers of the stack including the TLP, DLLP, and PHY layer logic sub-blocks
  • Flexible trigger events include training sequences, ordered sets, queue pairs, PRPs, SGL, SMB, etc.
  • Cascade captures from up to four Xgig chassis into a single trace view
  • Full support of PCI Express LTSSM analysis
  • Field replaceable modular fan and power supply
  • LED’s give quick indicators of power and status
  • Works with the VIAVI Xgig software tool suite: Trace Control, Trace View, Expert
  • Supported by a wide variety of interposers (CEM, U.3, etc.)
